Features · Spec sheet

A product spec sheet: groups of attributes, each with its title and a two-column table of attribute and value, two groups per row, with a PDF download and a compare button.

Full-page views: desktop, phone and dark mode

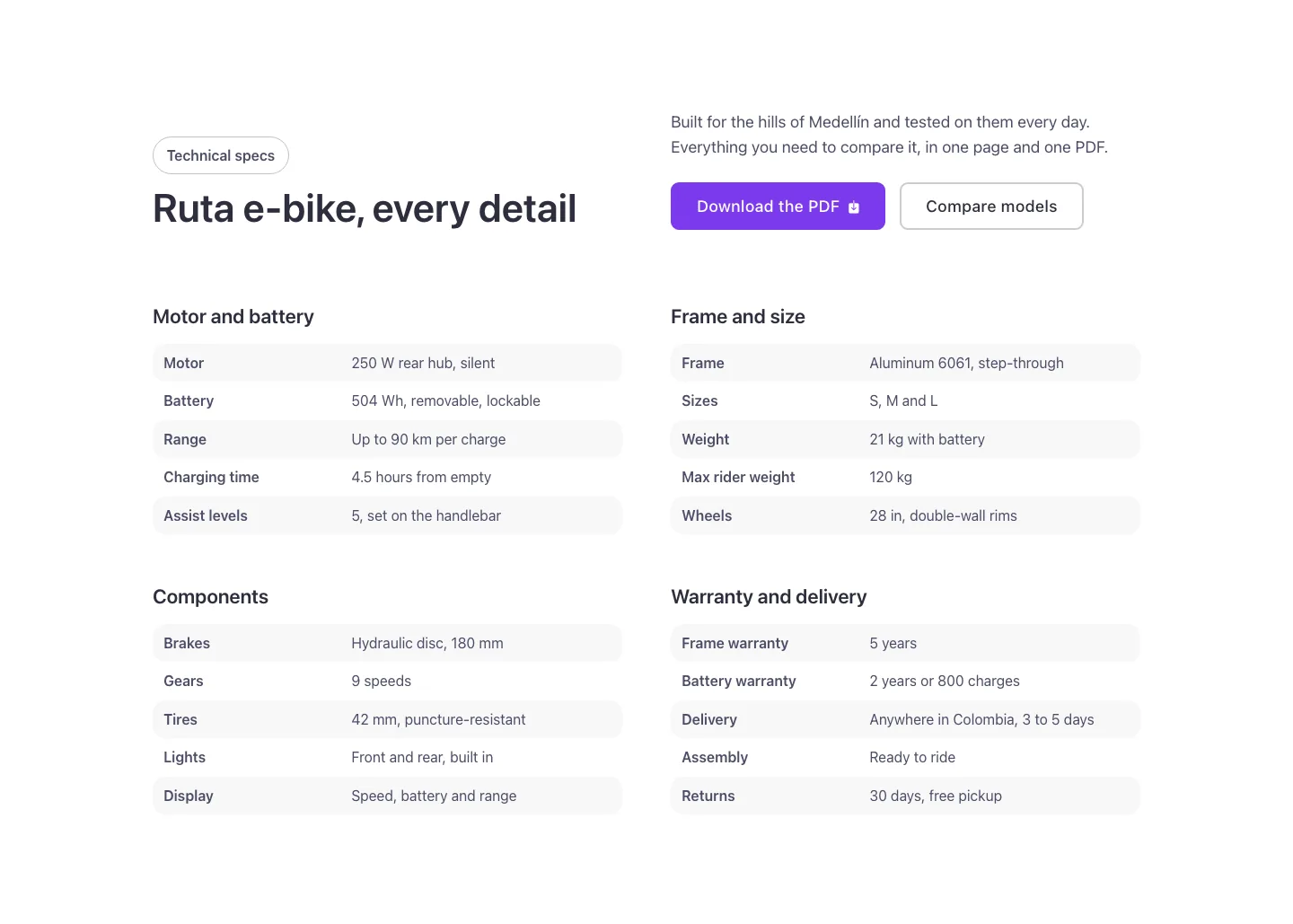

At 1440px wide.

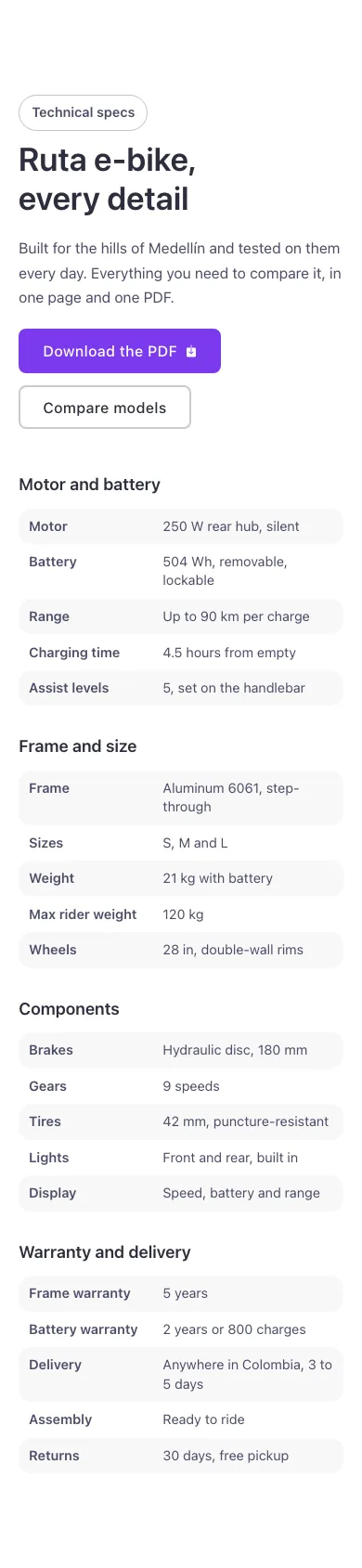

At 390px wide.

With your site in dark mode.

See it live: Features · Spec sheet on fancybricks.co — the live preview, and the button that copies it.

Structure

This is what the Bricks Structure panel shows after you paste the template. Component instances say which component they are.

Features · Spec sheet
  Container
    Intro   (FBK Intro)
      Intro · PDF   (FBK Button)
      Intro · Compare   (FBK Button)
    Spec sheet
      Group · Motor and battery
        Motor and battery · Title
        Motor and battery · Table
          Motor and battery · Row 1
            Motor and battery · Motor
            Motor and battery · Motor value
          Motor and battery · Row 2
            Motor and battery · Battery
            Motor and battery · Battery value
          Motor and battery · Row 3
            Motor and battery · Range
            Motor and battery · Range value
          Motor and battery · Row 4
            Motor and battery · Charging time
            Motor and battery · Charging time value
          Motor and battery · Row 5
            Motor and battery · Assist levels
            Motor and battery · Assist levels value
      Group · Frame and size
        Frame and size · Title
        Frame and size · Table
          Frame and size · Row 1
            Frame and size · Frame
            Frame and size · Frame value
          Frame and size · Row 2
            Frame and size · Sizes
            Frame and size · Sizes value
          Frame and size · Row 3
            Frame and size · Weight
            Frame and size · Weight value
          Frame and size · Row 4
            Frame and size · Max rider weight
            Frame and size · Max rider weight value
          Frame and size · Row 5
            Frame and size · Wheels
            Frame and size · Wheels value
      Group · Components
        Components · Title
        Components · Table
          Components · Row 1
            Components · Brakes
            Components · Brakes value
          Components · Row 2
            Components · Gears
            Components · Gears value
          Components · Row 3
            Components · Tires
            Components · Tires value
          Components · Row 4
            Components · Lights
            Components · Lights value
          Components · Row 5
            Components · Display
            Components · Display value
      Group · Warranty and delivery
        Warranty and delivery · Title
        Warranty and delivery · Table
          Warranty and delivery · Row 1
            Warranty and delivery · Frame warranty
            Warranty and delivery · Frame warranty value
          Warranty and delivery · Row 2
            Warranty and delivery · Battery warranty
            Warranty and delivery · Battery warranty value
          Warranty and delivery · Row 3
            Warranty and delivery · Delivery
            Warranty and delivery · Delivery value
          Warranty and delivery · Row 4
            Warranty and delivery · Assembly
            Warranty and delivery · Assembly value
          Warranty and delivery · Row 5
            Warranty and delivery · Returns
            Warranty and delivery · Returns value

The template also pastes a dashed note above the section, with the short version of this page. It only shows inside the builder, never on the published page — see Builder notes.

How to adjust

Every step is the same move: pick the element in the Structure panel, change its Properties.

Where are those panels?

How to adjust a template shows every one of them in a screenshot of the real builder: the Structure and Properties panels, the classes on an element, a component's style families and the field where a CSS variable goes.

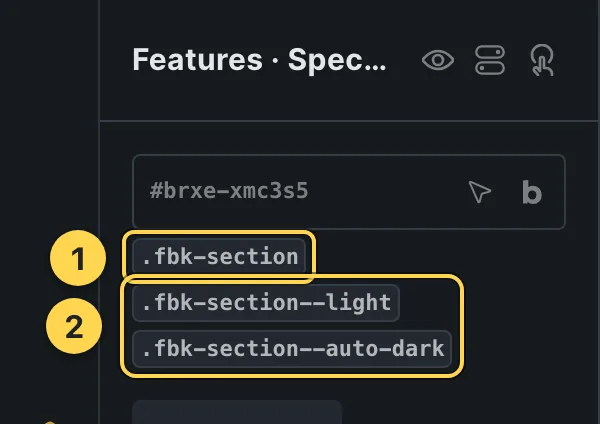

The classes this element carries, in the Bricks panel.

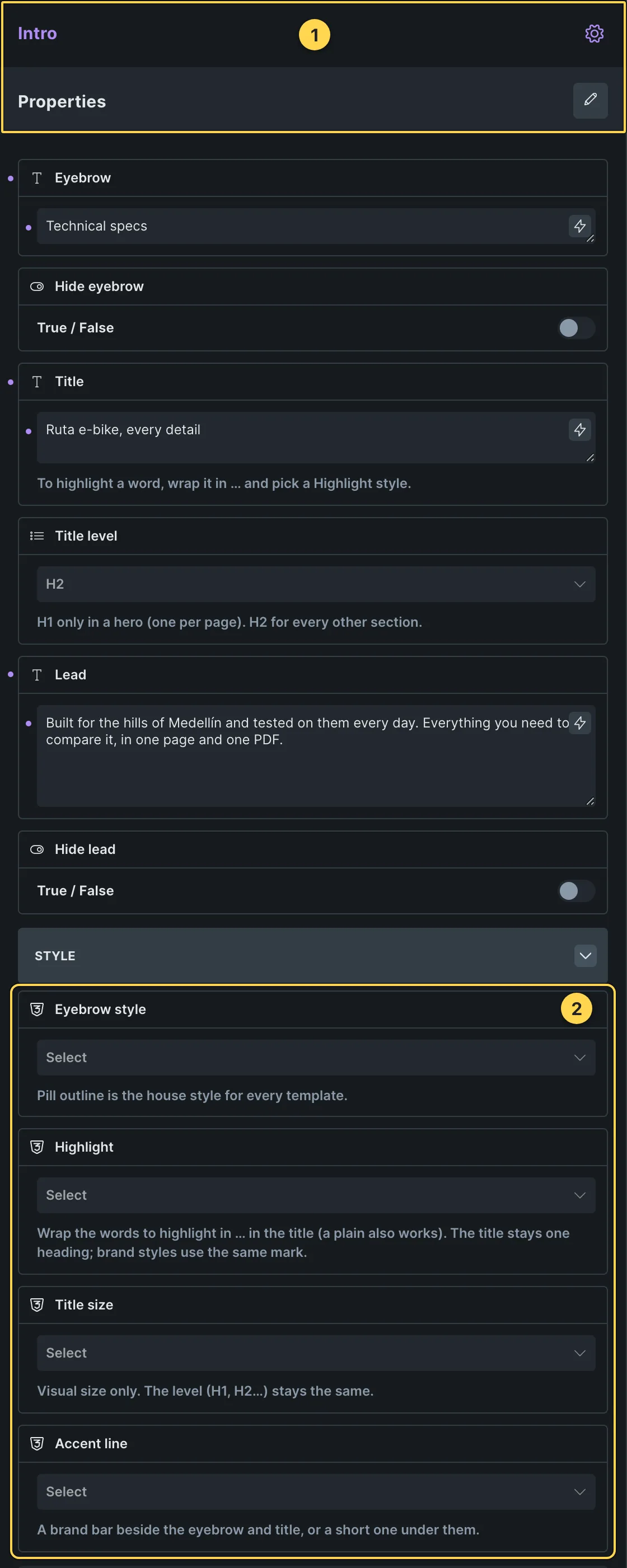

This template's own component, with its Style group open.

1. Paste the template in Bricks first — see Copy and paste.
2. Select Intro (FBK Intro) › Properties: Eyebrow, Hide eyebrow, Title, Title level, Lead, Hide lead · Style group: Eyebrow style, Highlight, Title size, Accent line · Layout group: Alignment, Layout, Background, Spacing · Motion group: Reveal in slider.
3. Select Intro · PDF, Intro · Compare (FBK Button) › Properties: Text, Link, Tone, Shadow on hover · Icon group: Icon, Icon position · Style group: Style, Size, Width, Hover effect.
4. Spacing, sizes, color and timing with no property of their own: the CSS variables below.

CSS variables

These are the only values in the template meant to be changed by hand. Copy the block, paste it, edit the numbers.

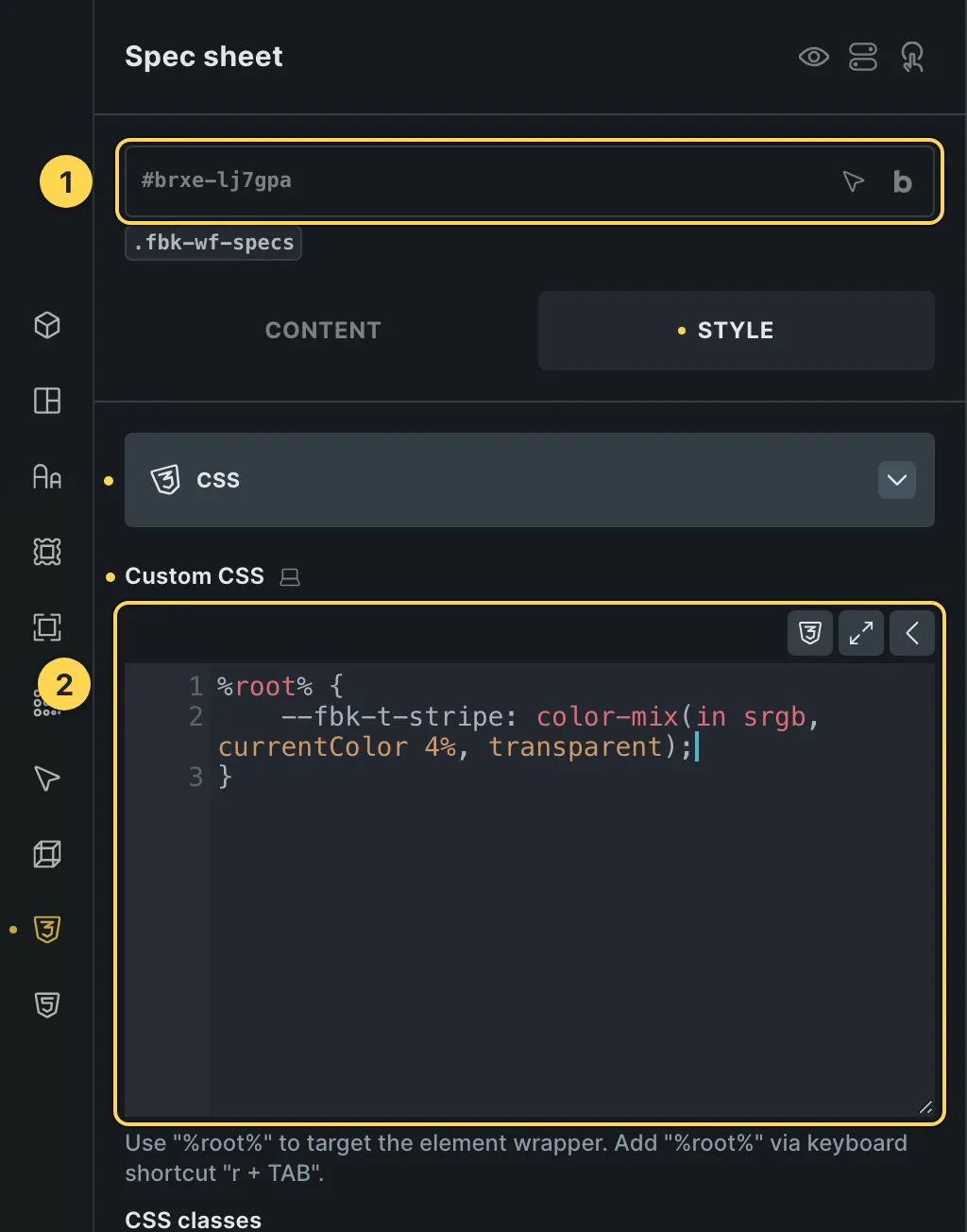

The Custom CSS field of this template's own element, with one of its variables as a real example.

/* «Spec sheet» · class .fbk-wf-specs */
.fbk-wf-specs {
  /* Stripe of every other row */
  --fbk-t-stripe: color-mix(in srgb, currentColor 4%, transparent);
}

Paste the block in the element's Style → CSS field (the selector is already in it), or set the same variables on the class itself to change every copy at once. The values are your framework's variables, so they follow your site: Choosing a framework.

Finish by hand

• A new layout with no FB 1.0 or 2.0 original. Each group is a title (h3) and a table made of blocks with table roles for screen readers: the table carries the group name (aria-label), each row an attribute (rowheader) and its value (cell). Duplicate a row to add an attribute, or a group to add a category; the grid keeps two columns (one on tablets and phones).
• Every other row takes a light tint of the text color (--fbk-t-stripe on .fbk-wf-specs). On phones the value column gets a little more room.
• Motion: the two buttons sweep. The rows have no link, so they stay still.

On phones

The template is designed desktop first, the Bricks default, and only changes at the two widths the library uses:

• 991px and below — .fbk-wf-specs, .fbk-intro.
• 767px and below — .fbk-wf-specs__row, .fbk-section.

Those changes live in Bricks' own breakpoint fields, so you edit them where you always do: pick the breakpoint in the toolbar and the same fields follow.

Careful with the classes shared by the whole library (fbk-section, fbk-intro, the component classes): a change there shows up in every template that uses them.

If your site's breakpoints are set up mobile first, copy the mobile-first variant of the template instead — see Copy and paste.

Accessibility

In this template, keyboard focus is visible on every interactive piece; movement is cut back when the visitor's system asks for less motion; the state screen readers need is already set (aria-label).

What is checked on every template, and what depends on your own palette: Accessibility.

Dark mode

With your site in dark mode this section turns dark too — the class fbk-section--auto-dark on the section does it. Remove the class to keep it light.

Its background is a modifier on the section, so you can swap it for any of the ones the template is checked with: fbk-section--light, fbk-section--soft, fbk-section--dark.

How the library follows your site's color scheme: Dark mode and preview.
